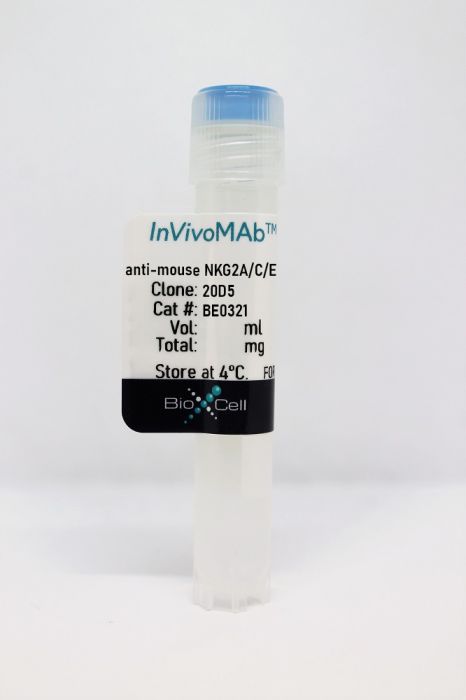

InVivoMAb anti-mouse NKG2A/C/E

Catalog #BE0321
Product Citations:

$164.00 - $4,280.00

Choose an Option...
  • 100 mg - $4,280.00
  • 50 mg - $3,024.00
  • 25 mg - $2,009.00
  • 5 mg - $600.00
  • 1 mg - $164.00
  • Custom Amount (Quotes Only)
In stock
Only %1 left

Product Details

The 20D5 monoclonal antibody reacts with mouse NKG2A, NKG2C, and NKG2E also known as CD159a, CD159c, and CD159e respectively. The NKG2 receptors belong to a family of C-type lectin-like receptors that form heterodimers with CD94. NKG2/CD94 heterodimeric complexes are primarily expressed on NK cells and NKT cells. NKG2 receptors are also expressed on CD8+ T cells activated in vivo and in vitro. NKG2/CD94 heterodimeric complexes recognize Qa-1, a nonclassical MHC class I antigen, presenting the Qdm peptide. CD94/NKG2 heterodimers on NK cells transduce signals after ligand binding. NKG2A is thought to transduce inhibitory signals, while NKG2C and NKG2E transduce stimulatory signals. Blocking NKG2A signaling has been shown to promote anti-tumor immunity in murine tumor models by enhancing the activity of both T and NK cells. For this reason, NKG2A targeting is being explored as a novel immune checkpoint inhibitory therapy for treating human cancers.

*An engineered recombinant mouse variant of the rat IgG2a anti-mouse NKG2A/C/E (clone 20D5) antibody with mouse IgG constant domains has been shown to block NKG2A signals in vivo in murine tumor models. BE0321 is the original 20D5 clone with rat IgG constant domains.


Isotype Rat IgG2a, κ
Recommended Isotype Control(s) InVivoMAb rat IgG2a isotype control, anti-trinitrophenol
Recommended Dilution Buffer InVivoPure pH 7.0 Dilution Buffer
Conjugation This product is unconjugated. Conjugation is available via our Antibody Conjugation Services.
Immunogen CHO transfected cells expressing the C57BL/6 allele of NKG2A and CD94
Reported Applications in vivo NKG2A blockade (see description)
in vitro NKG2A blockade
Immunohistochemistry (frozen)
Flow cytometry
Formulation PBS, pH 7.0
Contains no stabilizers or preservatives
Endotoxin <2EU/mg (<0.002EU/μg)
Determined by LAL gel clotting assay
Purity >95%
Determined by SDS-PAGE
Sterility 0.2 µm filtration
Production Purified from cell culture supernatant in an animal-free facility
Purification Protein G
RRID AB_2819048
Molecular Weight 150 kDa
Storage The antibody solution should be stored at the stock concentration at 4°C. Do not freeze.
in vivo NKG2A blockade
Andre, P., et al. (2018). "Anti-NKG2A mAb Is a Checkpoint Inhibitor that Promotes Anti-tumor Immunity by Unleashing Both T and NK Cells" Cell 175(7): 1731-1743 e1713. PubMed

Checkpoint inhibitors have revolutionized cancer treatment. However, only a minority of patients respond to these immunotherapies. Here, we report that blocking the inhibitory NKG2A receptor enhances tumor immunity by promoting both natural killer (NK) and CD8(+) T cell effector functions in mice and humans. Monalizumab, a humanized anti-NKG2A antibody, enhanced NK cell activity against various tumor cells and rescued CD8(+) T cell function in combination with PD-x axis blockade. Monalizumab also stimulated NK cell activity against antibody-coated target cells. Interim results of a phase II trial of monalizumab plus cetuximab in previously treated squamous cell carcinoma of the head and neck showed a 31% objective response rate. Most common adverse events were fatigue (17%), pyrexia (13%), and headache (10%). NKG2A targeting with monalizumab is thus a novel checkpoint inhibitory mechanism promoting anti-tumor immunity by enhancing the activity of both T and NK cells, which may complement first-generation immunotherapies against cancer.

in vivo NKG2A blockade
van Montfoort, N., et al. (2018). "NKG2A Blockade Potentiates CD8 T Cell Immunity Induced by Cancer Vaccines" Cell 175(7): 1744-1755 e1715. PubMed

Tumor-infiltrating CD8 T cells were found to frequently express the inhibitory receptor NKG2A, particularly in immune-reactive environments and after therapeutic cancer vaccination. High-dimensional cluster analysis demonstrated that NKG2A marks a unique immune effector subset preferentially co-expressing the tissue-resident CD103 molecule, but not immune checkpoint inhibitors. To examine whether NKG2A represented an adaptive resistance mechanism to cancer vaccination, we blocked the receptor with an antibody and knocked out its ligand Qa-1(b), the conserved ortholog of HLA-E, in four mouse tumor models. The impact of therapeutic vaccines was greatly potentiated by disruption of the NKG2A/Qa-1(b) axis even in a PD-1 refractory mouse model. NKG2A blockade therapy operated through CD8 T cells, but not NK cells. These findings indicate that NKG2A-blocking antibodies might improve clinical responses to therapeutic cancer vaccines.

Immunohistochemistry (frozen), Flow Cytometry
Yang, R. K., et al. (2012). "Intratumoral hu14.18-IL-2 (IC) induces local and systemic antitumor effects that involve both activated T and NK cells as well as enhanced IC retention" J Immunol 189(5): 2656-2664. PubMed

hu14.18-IL-2 (IC) is an immunocytokine consisting of human IL-2 linked to hu14.18 mAb, which recognizes the GD2 disialoganglioside. Phase 2 clinical trials of i.v. hu14.18-IL-2 (i.v.-IC) in neuroblastoma and melanoma are underway and have already demonstrated activity in neuroblastoma. We showed previously that intratumoral hu14.18-IL-2 (IT-IC) results in enhanced antitumor activity in mouse models compared with i.v.-IC. The studies presented in this article were designed to determine the mechanisms involved in this enhanced activity and to support the future clinical testing of intratumoral administration of immunocytokines. Improved survival and inhibition of growth of both local and distant tumors were observed in A/J mice bearing s.c. NXS2 neuroblastomas treated with IT-IC compared with those treated with i.v.-IC or control mice. The local and systemic antitumor effects of IT-IC were inhibited by depletion of NK cells or T cells. IT-IC resulted in increased NKG2D receptors on intratumoral NKG2A/C/E(+) NKp46(+) NK cells and NKG2A/C/E(+) CD8(+) T cells compared with control mice or mice treated with i.v.-IC. NKG2D levels were augmented more in tumor-infiltrating lymphocytes compared with splenocytes, supporting the localized nature of the intratumoral changes induced by IT-IC treatment. Prolonged retention of IC at the tumor site was seen with IT-IC compared with i.v.-IC. Overall, IT-IC resulted in increased numbers of activated T and NK cells within tumors, better IC retention in the tumor, enhanced inhibition of tumor growth, and improved survival compared with i.v.-IC.

in vitro NKG2A blockade, Flow Cytometry
Vance, R. E., et al. (1999). "Recognition of the class Ib molecule Qa-1(b) by putative activating receptors CD94/NKG2C and CD94/NKG2E on mouse natural killer cells" J Exp Med 190(12): 1801-1812. PubMed

The heterodimeric CD94/NKG2A receptor, expressed by mouse natural killer (NK) cells, transduces inhibitory signals upon recognition of its ligand, Qa-1(b), a nonclassical major histocompatibility complex class Ib molecule. Here we clone and express two additional receptors, CD94/NKG2C and CD94/NKG2E, which we show also bind to Qa-1(b). Within their extracellular carbohydrate recognition domains, NKG2C and NKG2E share extensive homology with NKG2A (93-95% amino acid similarity); however, NKG2C/E receptors differ from NKG2A in their cytoplasmic domains (only 33% similarity) and contain features that suggest that CD94/NKG2C and CD94/NKG2E may be activating receptors. We employ a novel blocking anti-NKG2 monoclonal antibody to provide the first direct evidence that CD94/NKG2 molecules are the only Qa-1(b) receptors on NK cells. Molecular analysis reveals that NKG2C and NKG2E messages are extensively alternatively spliced and approximately 20-fold less abundant than NKG2A message in NK cells. The organization of the mouse Cd94/Nkg2 gene cluster, presented here, shows striking similarity with that of the human, arguing that the entire CD94/NKG2 receptor system is relatively primitive in origin. Analysis of synonymous substitution frequencies suggests that within a species, NKG2 genes may maintain similarities with each other by concerted evolution, possibly involving gene conversion-like events. These findings have implications for understanding NK cells and also raise new possibilities for the role of Qa-1 in immune responses.

    • Mus musculus (House mouse)
    • ,
    • Cancer Research
    Leukemia-intrinsic determinants of CAR-T response revealed by iterative in vivo genome-wide CRISPR screening.

    In Nature Communications on 5 December 2023 by Ramos, A., Koch, C. E., et al.


    CAR-T therapy is a promising, novel treatment modality for B-cell malignancies and yet many patients relapse through a variety of means, including loss of CAR-T cells and antigen escape. To investigate leukemia-intrinsic CAR-T resistance mechanisms, we performed genome-wide CRISPR-Cas9 loss-of-function screens in an immunocompetent murine model of B-cell acute lymphoblastic leukemia (B-ALL) utilizing a modular guide RNA library. We identified IFNγR/JAK/STAT signaling and components of antigen processing and presentation pathway as key mediators of resistance to CAR-T therapy in vivo; intriguingly, loss of this pathway yielded the opposite effect in vitro (sensitized leukemia to CAR-T cells). Transcriptional characterization of this model demonstrated upregulation of these pathways in tumors relapsed after CAR-T treatment, and functional studies showed a surprising role for natural killer (NK) cells in engaging this resistance program. Finally, examination of data from B-ALL patients treated with CAR-T revealed an association between poor outcomes and increased expression of JAK/STAT and MHC-I in leukemia cells. Overall, our data identify an unexpected mechanism of resistance to CAR-T therapy in which tumor cell interaction with the in vivo tumor microenvironment, including NK cells, induces expression of an adaptive, therapy-induced, T-cell resistance program in tumor cells. © 2023. The Author(s).

    • In Vivo
    • ,
    • Mus musculus (House mouse)
    • ,
    • Immunology and Microbiology
    Differential expression of inhibitory receptor NKG2A distinguishes disease-specific exhausted CD8+ T cells.

    In MedComm (2020) on 1 March 2022 by Chen, X., Lin, Y., et al.


    Exhausted CD8+ T (Tex) cells are caused by persistent antigenic stimulation during chronic viral infection or tumorigenesis. Tex cells upregulate and sustain the expressions of multiple immune inhibitory receptors (IRs). Blocking IRs of Tex cells, exemplified by PD-1, can partially restore their effector functions and thus lead to viral suppression or tumor remission. Tex cells derived from chronic viral infections share the expression spectrum of IRs with Tex cells derived from tumors; however, whether any IRs are selectively expressed by tumor-derived Tex cells or virus-derived Tex cells remains to be learnt. In the study, we found that Tex cells upregulate IR natural killer cell lectin-like receptor isoform A (NKG2A) specifically in the context of tumor but not chronic viral infection. Moreover, the NKG2A expression is attributed to tumor antigen recognition and thus bias expressed by tumor-specific Tex cells in the tumor microenvironment instead of their counterparts in the periphery. Such dichotomous NKG2A expression further dictates the differential responsiveness of Tex cells to NKG2A immune checkpoint blockade. Therefore, our study highlighted NKG2A as a disease-dependent IR and provided novel insights into the distinct regulatory mechanisms underlying T cell exhaustion between tumor and chronic viral infection. © 2022 The Authors. MedComm published by Sichuan International Medical Exchange Promotion Association (SCIMEA) and John Wiley Sons Australia, Ltd.
