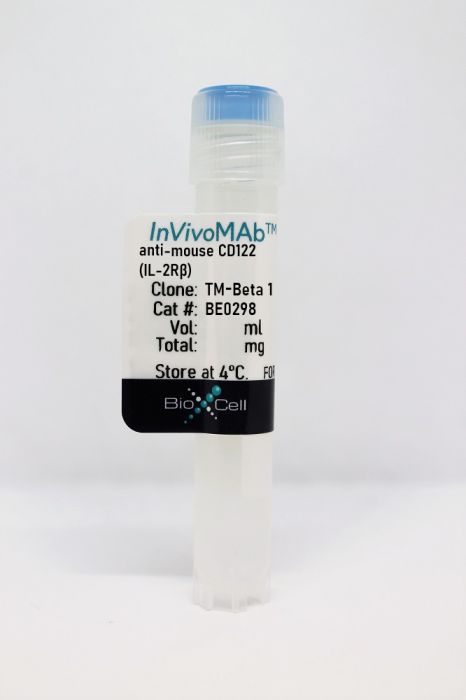

Catalog #BE0298

InVivoMAb anti-mouse CD122 (IL-2Rβ)

Clone TM-Beta 1
Reactivities Mouse
Product Citations 11
Isotype Rat IgG2b, κ

$178.00 - $4,651.50

$178.00 - $4.00

Choose an Option...
  • 100 mg - $4,651.50
  • 50 mg - $3,286.00
  • 25 mg - $2,183.00
  • 5 mg - $652.00
  • 1 mg - $178.00
  • Custom Amount (Quotes Only)
In stock
Only %1 left

Product Description

The TM-beta 1 monoclonal antibody reacts with mouse CD122 also known as the IL-2 receptor beta chain. CD122 is a 70-75 kDa subunit of the IL-2 receptor and the IL-15 receptor. CD122 is expressed on NK cells and at lower levels by T lymphocytes, B lymphocytes, monocytes, and macrophages. The IL-2R has been shown to play roles in lymphocyte differentiation, activation, and proliferation. In complex with IL-2Rα, IL-2R binds IL-2 with relatively low affinity however, when CD122 combines with IL-2Rα and the common gamma chain (CD132) the complex binds IL-2 with high affinity. The TM-beta 1 antibody is reported to inhibit binding of IL-2 to the IL-2R. Additionally, this antibody has been shown to deplete CD122 expressing NK cells with administered in vivo.

Specifications

Isotype Rat IgG2b, κ
Recommended Isotype Control(s) InVivoMAb rat IgG2b isotype control, anti-keyhole limpet hemocyanin
Recommended Dilution Buffer InVivoPure pH 8.0 Dilution Buffer
Conjugation This product is unconjugated. Conjugation is available via our Antibody Conjugation Services.
Immunogen Mouse IL-2Rβ transfected cell line (TART-mβ cells)
Reported Applications in vivo NK cell depletion
in vivo CD122 blockade
in vitro IL-2R blockade
Functional assays
Flow cytometry
Formulation PBS, pH 8.0
Contains no stabilizers or preservatives
Endotoxin ≤1EU/mg (≤0.001EU/μg)
Determined by LAL assay
Purity ≥95%
Determined by SDS-PAGE
Sterility 0.2 µm filtration
Production Purified from cell culture supernatant in an animal-free facility
Purification Protein G
RRID AB_2687820
Molecular Weight 150 kDa
Storage The antibody solution should be stored at the stock concentration at 4°C. Do not freeze.
Need a Custom Formulation? See All Antibody Customization Options

Application References

  • in vivo CD122 blockade
    Sultan, H., et al (2018). "Sustained Persistence of IL2 Signaling Enhances the Antitumor Effect of Peptide Vaccines through T-cell Expansion and Preventing PD-1 Inhibition" Cancer Immunol Res 6(5): 617-627.

    Peptide vaccines can be a successful and cost-effective way of generating T-cell responses against defined tumor antigens, especially when combined with immune adjuvants such as poly-IC. However, strong immune adjuvants can induce a collateral increase in numbers of irrelevant, nonspecific T cells, which limits the effectiveness of the peptide vaccines. Here, we report that providing prolonged IL2 signaling in the form of either IL2/anti-IL2 complexes or pegylated IL2 overcomes the competitive suppressive effect of irrelevant T cells, allowing the preferential expansion of antigen-specific T cells. In addition to increasing the number of tumor-reactive T cells, sustained IL2 enhanced the ability of T cells to resist PD-1-induced negative signals, increasing the therapeutic effectiveness of the vaccines against established tumors. This vaccination strategy using peptides and sustained IL2 could be taken into the clinic for the treatment of cancer.

  • in vivo NK cell depletion
    Brauner, H., et al (2016). "Depletion of IL-2 receptor beta-positive cells protects from diabetes in non-obese diabetic mice" Immunol Cell Biol 94(2): 177-184.

    The destruction of beta-cells in type 1 diabetes (T1D) progresses silently until only a minor fraction of the beta-cells remain. A late acting therapy leading to the prevention of further beta-cell killing would therefore be desirable. CD122, the beta chain of the interleukin-2 receptor, is highly expressed on natural killer (NK) cells and on a subpopulation of CD8 T cells. In this study, we have treated non-obese diabetic (NOD) mice with a depleting antibody against CD122. The treatment protected from diabetes, even when initiated just before disease onset. The degree of leukocyte infiltration into islets was unaffected by the treatment, further supporting effectiveness late in the disease process. It effectively removed all NK cells from the spleen, pancreas and pancreatic lymph nodes and abolished NK cell activity. Interestingly, despite the lack of CD122 expression on CD8 T cells in the pancreas, the overall frequency of CD8 cells decreased in this organ, whereas it was unaffected in the spleen. T cells were also still capable to respond against a foreign antigen. Conclusively, targeting of CD122(+) cells could represent a novel treatment strategy against T1D.

  • Flow Cytometry
    Ohs, I., et al (2016). "Interleukin-12 bypasses common gamma-chain signalling in emergency natural killer cell lymphopoiesis" Nat Commun 7: 13708.

    Differentiation and homeostasis of natural killer (NK) cells relies on common gamma-chain (gammac)-dependent cytokines, in particular IL-15. Consequently, NK cells do not develop in mice with targeted gammac deletion. Herein we identify an alternative pathway of NK-cell development driven by the proinflammatory cytokine IL-12, which can occur independently of gammac-signalling. In response to viral infection or upon exogenous administration, IL-12 is sufficient to elicit the emergence of a population of CD122+CD49b+ cells by targeting NK-cell precursors (NKPs) in the bone marrow (BM). We confirm the NK-cell identity of these cells by transcriptome-wide analyses and their ability to eliminate tumour cells. Rather than using the conventional pathway of NK-cell development, IL-12-driven CD122+CD49b+ cells remain confined to a NK1.1lowNKp46low stage, but differentiate into NK1.1+NKp46+ cells in the presence of gammac-cytokines. Our data reveal an IL-12-driven hard-wired pathway of emergency NK-cell lymphopoiesis bypassing steady-state gammac-signalling.

  • in vivo NK cell depletion
    Leung, K. T., et al (2011). "The tetraspanin CD9 regulates migration, adhesion, and homing of human cord blood CD34+ hematopoietic stem and progenitor cells" Blood 117(6): 1840-1850.

    The stromal cell-derived factor-1 (SDF-1)/chemokine C-X-C receptor 4 (CXCR4) axis plays a critical role in homing and engraftment of hematopoietic stem/progenitor cells (HSCs) during bone marrow transplantation. To investigate the transcriptional regulation provided by this axis, we performed the first differential transcriptome profiling of human cord blood CD34(+) cells in response to short-term exposure to SDF-1 and identified a panel of genes with putative homing functions. We demonstrated that CD9, a member of the tetraspanin family of proteins, was expressed in CD34(+)CD38(-/lo) and CD34(+)CD38(+) cells. CD9 levels were enhanced by SDF-1, which simultaneously down-regulated CXCR4 membrane expression. Using specific inhibitors and activators, we demonstrated that CD9 expression was modulated via CXCR4, G-protein, protein kinase C, phospholipase C, extracellular signal-regulated kinase, and Janus kinase 2 signals. Pretreatment of CD34(+) cells with the anti-CD9 monoclonal antibody ALB6 significantly inhibited SDF-1-mediated transendothelial migration and calcium mobilization, whereas adhesion to fibronectin and endothelial cells was enhanced. Pretreatment of CD34(+) cells with ALB6 significantly impaired their homing to bone marrow and spleen of sublethally irradiated NOD/SCID (nonobese diabetic/severe combined immune-deficient) mice. Sorted CD34(+)CD9(-) cells displayed lower bone marrow homing capacity compared with that of total CD34(+) cells. CD9 expression on homed CD34(+) cells was significantly up-regulated in vivo. Our results indicate that CD9 might possess specific functions in HSC homing.

Product Citations

  • A Microbiota- and IL-15-Dependent Innate-Like B Cell Progenitor Expressing E4BP4.

    In Adv Sci (Weinh) on 1 February 2026 by He, J., Hou, X., et al.

    PubMed

    While natural killer (NK) cells and B cells arise from common lymphoid progenitors, the existence and nature of cells co-expressing markers of both lineages (NK-B cells) remain controversial. Here, this work identifies a significant population of CD3-NKp46-CD19⁺NK1.1⁺ cells, termed NK-B cells, enriched in phosphoinositide-dependent protein kinase-1(PDK1)-deficient mice but also present in wild-type bone marrow. Single-cell RNA sequencing and high-dimensional flow cytometry reveal these NK-B cells reside within early B cell developmental stages (pro-B/pre-B). Functionally, upon adoptive transfer into lymphocyte-deficient hosts, NK-B cells preferentially differentiated into B cells. Unlike conventional B cell precursors, NK-B cells exhibit innate characteristics, including the capacity to secrete interferon-gamma (IFN-γ) and transforming growth factor-beta (TGF-β), and expressed CD122 (IL-2/15Rβ) and Toll-like receptor 9 (TLR9). Using a novel E4 promoter-binding protein 4 (E4BP4) reporter model, this work demonstrates that both interleukin-15 (IL-15) signaling (via CD122) and TLR9-mediated sensing of the gut microbiota cooperatively sustain E4BP4 expression within these progenitors. Consequently, germ-free mice and mice deficient in IL-15 or E4BP4 exhibit a profound loss of NK-B cells. These findings unveil a distinct E4BP4-expressing, innate-like B cell progenitor pathway regulated by microbiota and IL-15.

  • Mapping the genetic landscape establishing a tumor immune microenvironment favorable for anti-PD-1 response.

    In Cell Rep on 27 May 2025 by Skelly, D. A., Graham, J. P., et al.

    PubMed

    Identifying host genetic factors modulating immune checkpoint inhibitor (ICI) efficacy is experimentally challenging. Our approach, utilizing the Collaborative Cross mouse genetic resource, fixes the tumor genomic configuration while varying host genetics. We find that response to anti-PD-1 (aPD1) immunotherapy is significantly heritable in four distinct murine tumor models (H2: 0.18-0.40). For the MC38 colorectal carcinoma system, we map four significant ICI response quantitative trait loci (QTLs) with significant epistatic interactions. The differentially expressed genes within these QTLs that define responder genetics are highly enriched for processes involving antigen processing and presentation, allograft rejection, and graft vs. host disease (all p < 1 × 10-10). Functional blockade of two top candidate immune targets, GM-CSF and IL-2RB, completely abrogates the MC38 transcriptional response to aPD1 therapy. Thus, our in vivo experimental platform is a powerful approach for discovery of host genetic factors that establish the tumor immune microenvironment propitious for ICI response.

  • Prodrugs of paclitaxel improve in situ photo-vaccination.

    In Photochem Photobiol on 10 October 2024 by Giram, P., Bist, G., et al.

    PubMed

    Photodynamic therapy (PDT) effectively kills cancer cells and initiates immune responses that promote anticancer effects locally and systemically. Primarily developed for local and regional cancers, the potential of PDT for systemic antitumor effects [in situ photo-vaccination (ISPV)] remains underexplored. This study investigates: (1) the comparative effectiveness of paclitaxel (PTX) prodrug [Pc-(L-PTX)2] for PDT and site-specific PTX effects versus its pseudo-prodrug [Pc-(NCL-PTX)2] for PDT combined with checkpoint inhibitors; (2) mechanisms driving systemic antitumor effects; and (3) the prophylactic impact on preventing cancer recurrence. A bilateral tumor model was established in BALB/c mice through subcutaneous injection of CT26 cells. Mice received the PTX prodrug (0.5 μmole kg-1, i.v.), and tumors were treated with a 690-nm laser (75 mW cm-2 for 30 min, drug-light interval 0.5 h, light does 135 J cm-1), followed by anti-CTLA-4 (100 μg dose-1, i.p.) on days 1, 4, and 7. Notable enhancement in both local and systemic antitumor effectiveness was observed with [Pc-(L-PTX)2] compared to [Pc-(NCL-PTX)2] with checkpoint inhibitor. Immune cell depletion and immunohistochemistry confirmed neutrophils and CD8+ T cells are effectors for systemic antitumor effects. Treatment-induced immune memory resisted newly rechallenged CT26, showcasing prophylactic benefits. ISPV with a PTX prodrug and anti-CTLA-4 is a promising approach for treating metastatic cancers and preventing recurrence.

  • Iron Chelation Therapy Elicits Innate Immune Control of Metastatic Ovarian Cancer.

    In Cancer Discov on 4 October 2024 by Sandoval, T. A., Salvagno, C., et al.

    PubMed

    Iron accumulation in tumors contributes to disease progression and chemoresistance. Although targeting this process can influence various hallmarks of cancer, the immunomodulatory effects of iron chelation in the tumor microenvironment are unknown. Here, we report that treatment with deferiprone, an FDA-approved iron chelator, unleashes innate immune responses that restrain ovarian cancer. Deferiprone reprogrammed ovarian cancer cells toward an immunostimulatory state characterized by the production of type-I IFN and overexpression of molecules that activate NK cells. Mechanistically, these effects were driven by innate sensing of mitochondrial DNA in the cytosol and concomitant activation of nuclear DNA damage responses triggered upon iron chelation. Deferiprone synergized with chemotherapy and prolonged the survival of mice with ovarian cancer by bolstering type-I IFN responses that drove NK cell-dependent control of metastatic disease. Hence, iron chelation may represent an alternative immunotherapeutic strategy for malignancies that are refractory to current T-cell-centric modalities. Significance: This study uncovers that targeting dysregulated iron accumulation in ovarian tumors represents a major therapeutic opportunity. Iron chelation therapy using an FDA-approved agent causes immunogenic stress responses in ovarian cancer cells that delay metastatic disease progression and enhance the effects of first-line chemotherapy. See related commentary by Bell and Zou, p. 1771.
